RB2508 Crossed Roller Bearing 25X41X8mm

Get Latest Price

Reference FOB Price:

US10 ~ 1000 / Piece

Min. Order:

2 Piece

Stock:

1000 Piece

Production Capacity:

10000pcs

Port:

Zhengzhou/Shanghai

Payment term:

FOB, CPT, DDP,CFR, CIF

Delivery time:

In stock

Technical Parameters:

Product Designations:

RB2508

Old Designations:

RB2508

HS Code:

8482800000999

Structure:

One piece inner ring /two pieces outer ring

Number of Rows:

Inside Diameter:

25 mm

Outside Diameter:

41 mm

Thickness:

8 mm

Weight:

0.05 KG

Dynamic load Capacity, Radial (Cr):

3.63

Static load Capacity, Radial (Cor):

3.83

Demensions:

25X41X8mm

Brand:

HONB

Radial Clearance Trade No.:

Positive/Negative

Precision Rating:

P2/P4/P5

Load Direction:

radial direction

Bearing Material:

Steel GCr15

Cage Type:

PA66+GF25-JB

Cage material:

nylon/copper

Seals Type:

Double Seals/no seals

Seal Material:

rubber

Roller Material:

Steel GCr15

Transport Package:

Plywood case/Carton

Shipping Ways:

Shipping/Air transport/Express

Country of Origin:

Luoyang

Service:

One year

Feature:

High speed bearings

Application:

Rotary table, vertical grinder, indexing heads, gear milling machine

RB2508 (outer ring division type with inner rotating), equals to NRXT series bearing and CRB seires bearing.(HONBbearing06)

Structure: crossed roller

Availability: in stock

M.I.Q.: 2 pcs

Packing condition: carton box/Plywood case

Brand: HONB or customized

Unit net weight: 0.05kg

APPLICATION:
widely used on high precision rotary table, robot joints, rotating units, sophisticated medical equipments, and measurement instruments.

RB Series(One-piece inner ring,two-piece outer ring)										Unit:mm
Model	Main dimensions					Shoulder dimension		Basic load rating(radial direction)		Mass
	Inner ring	Outer ring	Roller pitch diameter	Height	Chamfer	Shoulder dimension		Cr	Cor	Mass
	d	D	Dpw	B B1	r_min	d_s	D_h	kN	kN	kg
RB2008	20	36	27	8	0.5	23.5	30.5	3.23	3.1	0.04
RB2508	25	41	32	8	0.5	28.5	35.5	3.63	3.83	0.05
RB3010	30	55	41.5	10	0.6	37	47	7.35	8.36	0.12
RB3510	35	60	46.5	10	0.6	41	51.5	7.64	9.12	0.13
RB4010	40	65	51.5	10	0.6	47.5	57.5	8.33	10.6	0.16
RB4510	45	70	56.5	10	0.6	51	61.5	8.62	11.3	0.17
RB5013	50	80	64	13	0.6	57.4	72	16.7	20.9	0.27
RB6013	60	90	74	13	0.6	68	82	18	24.3	0.3
RB7013	70	100	84	13	0.6	78	92	19.4	27.7	0.35
RB8016	80	120	98	16	0.6	91	111	30.1	42.1	0.7
RB9016	90	130	108	16	1	98	118	31.4	45.3	0.75
RB10016	100	140	119.3	16	1	109	129	31.7	48.6	0.83
RB10020	100	150	123	20	1	113	133	33.1	50.9	1.45

Share this product to:

Let more people see your product

How can you buy RB2508 Crossed Roller Bearing 25X41X8mm on the Internet?
High quality RB2508 ( 0.05 kg Mass, ID: 25 mm OD: 41 mm WD: 8 mm , 1 Rows , Positive/Negative Radial Clearance , P2/P4/P5 Accuracy Class , Steel GCr15 Material , 3.63 Radial dynamic , 3.83 Radial static ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. RB2508. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

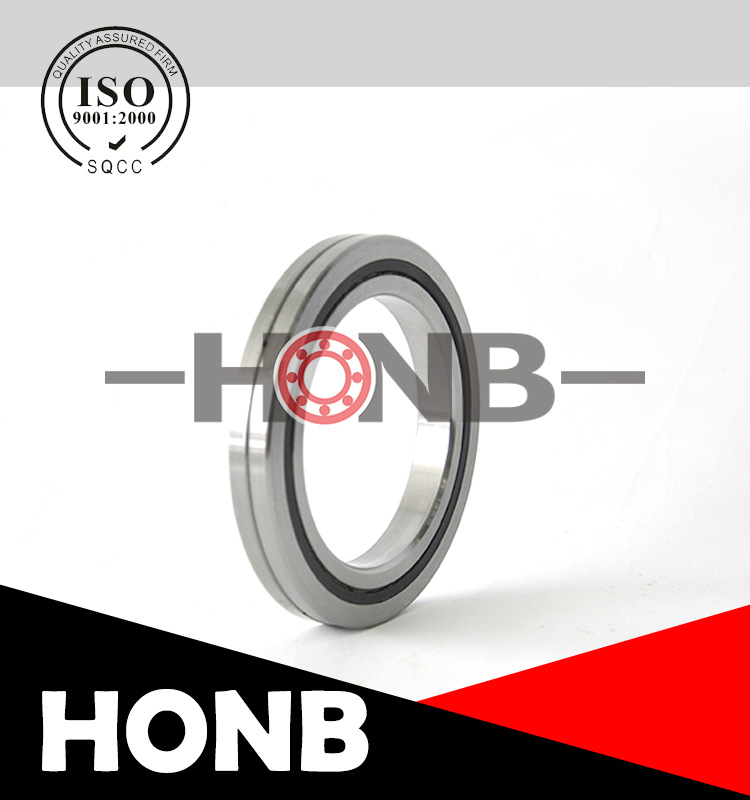

- RB2008 Crossed Roller Bearing 20X36X8mm
