External Toothed EB1.20.0844.200-1STPN Swivel Ball Bearing Ring With One Row

Get Latest Price

Reference FOB Price:

US100 ~ 1500 / Piece

Min. Order:

1 Piece

Stock:

100 Piece

Production Capacity:

100pc/month

Port:

qingdao, shanghai, tianjin, ningbo, guangzhou

Payment term:

fob, cif, exw

Delivery time:

15-45days

Technical Parameters:

Product Designations:

EB1.20.0844.200-1STPN

HS Code:

8482109000

Structure:

four point contact ball bearing

Number of Rows:

single row

Inside Diameter:

772 mm

Outside Diameter:

950.4 mm

Thickness:

56 mm

Weight:

71 KG

Limiting speed (Oil rpm):

EP2

Demensions:

950.4*772*56

Brand:

LYMC

Precision Rating:

P0, P6, P5, P4, P2

Bearing Material:

42CrMo/50Mn/45#/custom

Cage material:

Nylon/steel/copper

Seals Type:

open

Seal Material:

NBR

Ball Material:

GCr15

Roller Material:

GCr15

Transport Package:

export wooden cases

Shipping Ways:

sea, air, express, train

Country of Origin:

China

Service:

reply within 24 hours, oem service, design service, technical support

Quality Control:

iso9001, QC report

Outer Ring Width:

45.5

Inner Ring Width:

45.5

Rolling Element:

steel ball

Gear Options:

external gear

Application:

Cranes, Aerial lifts, Excavators, Wind turbines, Utility derricks, Log loaders and feller bunchers, Grapples, Mining equipment

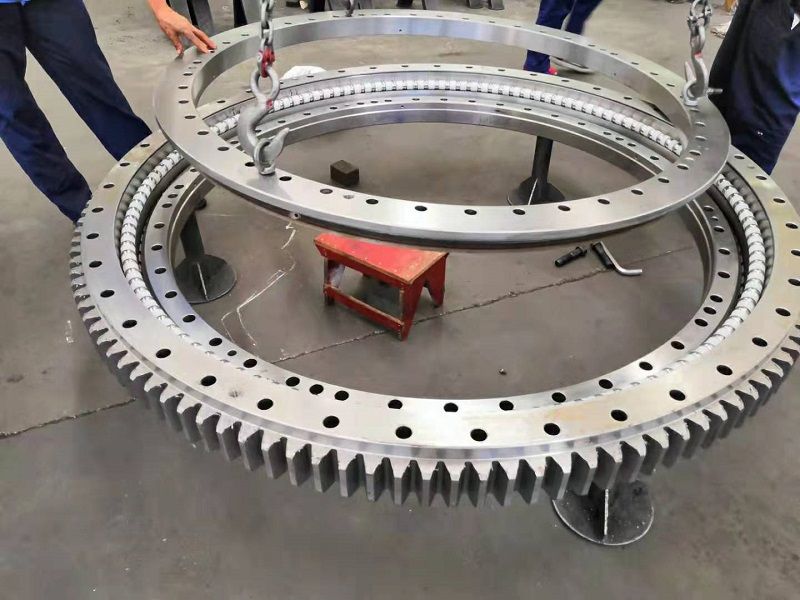

External toothed EB1.20.0844.200-1STPN swivel ball bearing ring with one row

material:42crmo/50mn/45#/custom

structure:single row four point contact slewing ball bearing

gear option:external gear, internal gear, non gear

raceway hardness:55-62HRC

outer ring dia(De):950.4mm

inner ring dia(Di):772mm

thickness/width(H):56mm

Mounting hole dia(Fe):885mm

Mounting hole dia(Fi):798mm

Mounting hole bore(Ne):36-M12

Mounting hole bore(Ni):40-φ14

outer ring width/thickness:45.5mm

inner ring width/thickness:45.5mm

module(m):8

teeth no.(Z):117

Mass:71kgs

More types for you:

EB1.20.0314.200-1STPN
EB1.20.0414.200-1STPN
EB1.20.0544.200-1STPN
EB1.20.0644.200-1STPN
EB1.20.0744.200-1STPN
EB1.20.0844.200-1STPN
EB1.20.0944.200-1STPN
EB1.20.1094.200-1STPN

Luoyang MC Bearing Technology Co.,Ltd (LYMC),who is manufacture located in bearing zone, focus on Slewing bearing, cross roller bearing and pinion,Dia from 50mm-8000mm, Our team with technical and full experience in the bearing industry.

Four-point contact ball slewing turntable bearings consist of two ring seats. Compact structure, light weight, steel ball and arc track contact at four points, can bear axial force,radial force and overturning moment at the same time, has strong dynamic load.

Packaging:

1.Filling with anti-rust oil
2.Corved with Plastic paper
3.Corved with kraft paper
4.Corved with Blue tie
5.Put in wooden box

Delivery time:

within 7 working days with stock(standard slewing bearing)

within 35-45 working days without stock(non-standard slewing bearing)

Payment term:T/T

If any interesteed items or inquiry, please feel free to contact us. All inquiry will be replied within 24 hours.
