Deep groove ball bearings 6015N
Bearing number : 6015N

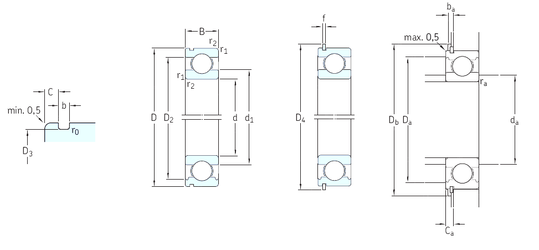

Size (mm) : 75x115x20 Brand : SKF d (mm) : 75 D (mm) : 115 B (mm) : 20 Bearing dimensions and specification in brand catalogue : d - 75 mm D - 115 mm B - 20 mm C - 20 mm b - 2,7 mm d1 - 87,8 mm r0 max. - 0,6 mm r1 min. - 1,1 mm r2 min. - 1,1 mm C - 2,87 mm D2 - 105 mm D3 - 111,81 mm D4 - 121,6 mm Ca max. - 5,33 mm da min. - 3 mm da max - 81 mm Da max. - 109 mm Db min. - 123 mm ra max. - 1 mm Weight - 0,64 Kg Basic dynamic load rating (C) - 41,6 kN Basic static load rating (C0) - 33,5 kN Fatigue load limit (Pu) - 1,43 Reference speed - 12000 r/min Limiting speed - 7500 r/min Calculation factor (f0) - 16 Calculation factor (kr) - 0,025
