438/432D Tapered Roller Bearing Size 1 3/4x3.75x2.4376 Inch

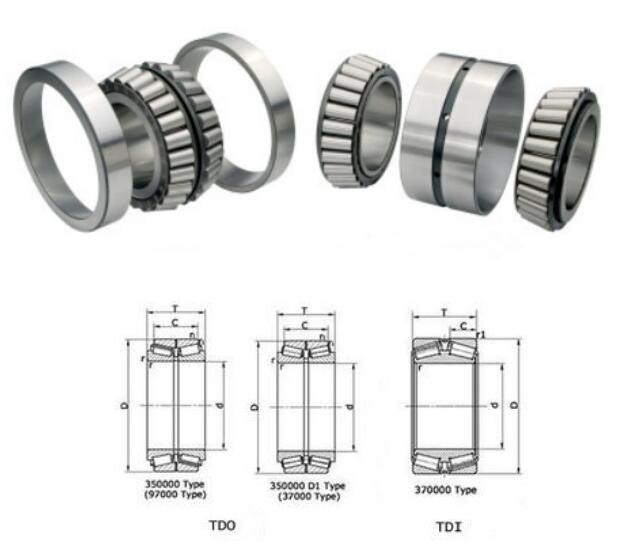

438/432D Tapered Roller Bearing, TDO Type, Double Row, Inch Size.
Size (Inner Dia x Outer Dia x Bearing Width Across Cones): 1 3/4x3.75x2.4376 Inch (44.45x95.25x61.915 mm)
Cone Part No.: 438
Cup Part No.: 432D
Mini Operating Temperature:-40 °C
Max Operating Temperature:120 °C
438/432D Tapered Roller Bearing consists of two single inner rings (Cone) 438 and a single piece (double) outer ring (Cup) 432D. Besides, it is usually supplied complete with an inner-ring spacer as a pre-set assembly.
|
438/432D Tapered Roller Bearing |
||
|
Type: |
TDO |
|
|
Series: |
435 |
|
|
Cone Part Number: |
438 |
|
|
Cup Part Number: |
432D |
|
|
Bearing Weight (kg) |
1.99 |
|
|
Main Dimensions: |
||
|
|
inch |
mm |
|
d-Bore: |
1 3/4 |
44.45 |
|
D-Cup Outer Diameter: |
3.75 |
95.25 |
|
B-Cone Width: |
1.1772 |
29.901 |
|
C-Double Cup Width: |
2 |
50.8 |
|
T-Bearing Width Across Cones |
2.4376 |
61.915 |
|
Bearing Type: |
Roller |
|
|
Ring Material: |
Chrome Steel |
|
|
Roller Material: |
Chrome Steel |
|
|
Cage Material: |
Stamped Steel |
|
|
Precision: |
Standard Precision |
|
|
Load Direction: |
Combined Radial and Thrust |
|
|
Country of Origin: |
China |
|
|
HS Code: |
8482500090 |
|
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Applications: gearboxes, hoisting equipment, rolling mills and machines in the mining industry, e.g. tunnelling machines.
All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at sales@partsservicesupply.com or contact us by Wechat or Whatsapp at +8618062246726.
