42362/42587-B Tapered Roller Bearing Size 3.625x5.875x1.1406 Inch

Get Latest Price

Min. Order:

1 Piece

Stock:

100 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Mobile NO.: +86-18062246726

Technical Parameters:

Product Designations:

42362/42587-B

HS Code:

8482500090

Structure:

Roller Bearing

Number of Rows:

Single

Inside Diameter:

92.075 mm

Outside Diameter:

149.225 mm

Thickness:

28.971 mm

Weight:

2.04 KG

Demensions:

92.075x149.225x28.971

Brand:

Neutral Product

Radial Clearance Trade No.:

Standard

Precision Rating:

Standard

Load Direction:

Radial and Thrust

Bearing Material:

Chrome Steel (Gcr15)

Cage material:

Steel

Roller Material:

Chrome Steel (Gcr15)

Transport Package:

Standard Export Package

Shipping Ways:

by Sea or Air

Country of Origin:

China

Operating Temperature Range:

-40℃ to 120℃

System of Measurement:

Inch

Series:

42000

Rolling Element:

Roller

Cone Number:

42362

Cup Number:

42587-B

Cone Width (B):

28.971

Cup Width (C):

24.608

Chamfer (R):

3.6

Chamfer (r):

3.3

Application:

Construction, Transportation and Agricultural Machinery, Conveyor Plants, Hydraulic Jacks, and other industry.

42362/42587-B Tapered Roller Bearing, Single Row, With Flange.

Cone Part No.: 42362

Cup Part No.: 42587-B

Size (Inner Dia x Outer Dia x Assembly Width): 3.625x5.875x1.1406 inch (92.075x149.225x28.971mm)

Mini Operating Temperature:-40 °C

Max Operating Temperature:120 °C

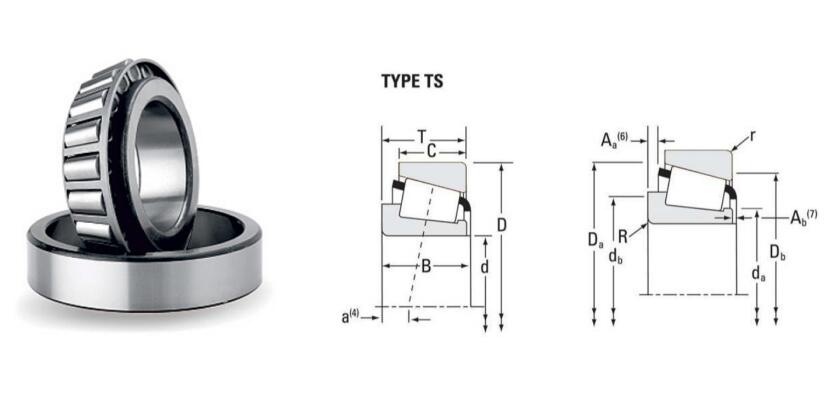

42362/42587-B tapered roller bearing (TSF type) consists of two main separable parts: the cone (inner ring) 42362 assembly and the cup (outer ring) 42587-B. It is typically mounted in opposing pairs on a shaft. TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.

42362/42587-B Tapered Roller Bearing
Type:	TSF (Tapered Single)
Series:	42000
Cone Part Number:	42362
Cup Part Number:	42587-B
Bearing Weight (kg)	2.04
Main Dimensions:
	inch	mm
d-Bore:	3.625	92.075
D-Cup Outer Diameter:	5.875	149.225
D1-Flange Outer Diameter:	6.0898	154.681
B-Cone Width:	1.1406	28.971
C-Cup Width:	0.9688	24.608
C1-Cup Flange Width:	0.2188	5.558
T1 - Bearing Width to Flange:	0.5	12.7
Bearing Type:	Roller
Bearing Material:	Chrome Steel
Cage Material:	Stamped Steel
Precision:	Standard Precision
Load Direction:	Combined Radial and Thrust
Country of Origin:	China
HS Code:	8482500090

Applicatioins: Gearing Systems and Transmissions, Thermal Power Coal Transporters, Port Equipment, Rubber and other Industrial applications, Machine Tool Spindles, Gear Reducer, Automotive Drive Axle, Aircraft wheels, Agricultural Wheels, Tensioning Roller, Raking Machine, Construction and Mining Equipment, Railroad Axle-box, etc.

All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at sales@partsservicesupply.com or contact us by Wechat or Whatsapp at +8618062246726.
